32G/25G SFP28
25G SFP28-DWDM

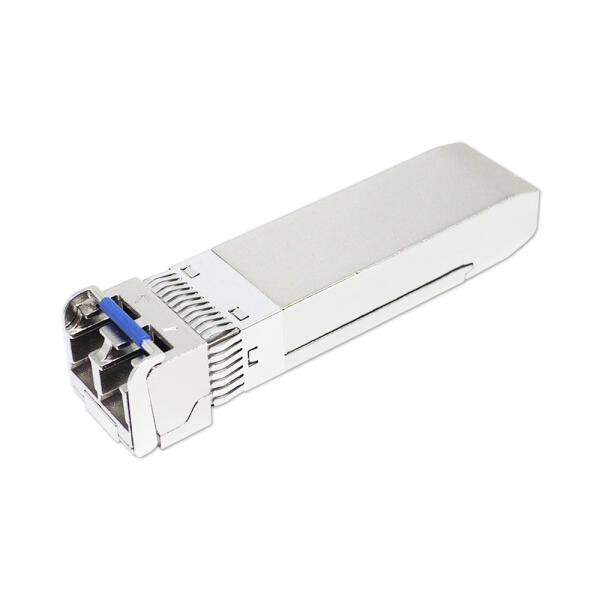

25G DWDM SFP28 Transceiver
Hot Pluggable, Duplex LC, 100GHz DWDM EML, Single Mode, 10KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSPP-N7-Dxx-10DQ | 25G | 100GHz ITU Grid C-Band DWDM | Duplex LC | SM 10km | 0~70°C | SFP28-25G-DWDM C-Band 10km, C-Temp | |
| FSPP-N7-Dxx-10DQi | 25G | 100GHz ITU Grid C-Band DWDM | Duplex LC | SM 10km | -40~85°C | SFP28-25G-DWDM C-Band 10km, I-Temp | |
- 25GBASE-LR Ethernet @25.78G
- CPRI Option #10 @24.33G
- eCPRI 5G Mobile Networks
- DWDM Networks
- Compatible with IEEE802.3cc 25GBASE-LR
- Compliant with CPRI option10
- Compliant with SFF-8402 SFP28 MSA
- Data Rate up to 25.78Gbps
- Built-in CDR on both Transmitter and Receiver
- Hot Pluggable
- C-Band 100GHz DWDM EML laser transmitter
- PIN Receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 10km over SM fiber
- Maximum power consumption 2.3W (C-Temp), 2.7W (I-Temp)
- RoHS Compliant
