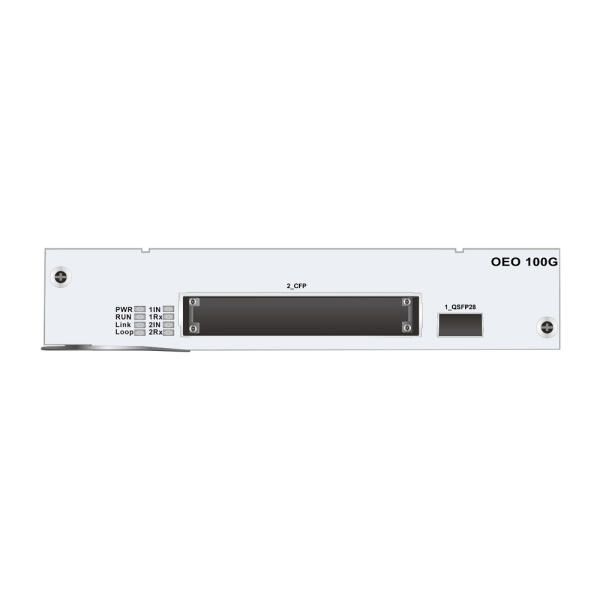

F520 100G OEO (100G Transponder, QSFP28 to CFP)
F520 100G Transponder 1*100G QSFP28 to 1*100G CFP
Features:
- Client side: 1*100G QSFP28
- Line side: 1*100G CFP
- Support Line-side GFEC (G.709 RS-FEC), EFEC and SDFEC (depends on CFP-DCO module)
- Support adjustable wavelength with CFP-DCO module
- Support adjustable output power with CFP-DCO module
- Support OSNR real-time monitoring with CFP-DCO module
- Support port Loopback test
- Dispersion Tolerance up to 40000ps/nm (depends on CFP-DCO module)
- Hot Swap
- Real-Time DDM
- Support ALS (Automatic Laser Shutdown)
- Support LFP (Link Forward Pass though)
- Support all F520 Chassis
| Inquiry | Parameter | Technical indicators | Download |
|---|---|---|---|
Data Rate CFP-DCO DWDM Wavelength Management Power Consumption Size(mm) Operating Temperature Storage Temperature Relative Humidity (no condensation) | 100Gbps 1529.5 ~ 1565.50nm TELNET, SNMP, WEB < 50W 191(W) x 253(D) x 41(H) -10 ~ 60˚C -40 ~ 80˚C 5 ~ 95RH% |  |
