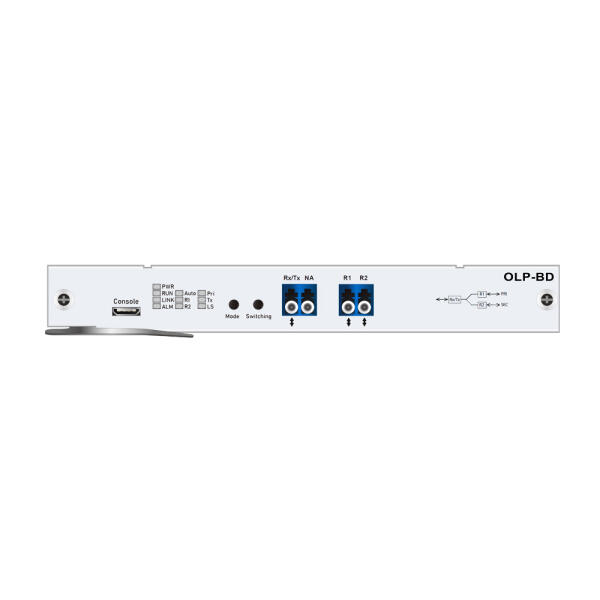

F520 OLP 1+1 BiDi ( Optical Line Protection BiDi )
F520 OLP 1+1 BiDi ( Optical Line Protection 1+1 Bi-Direction )
Features:
- Reduce interrupt time of communication caused by fiber failure remarkably
- Real-Time fiber power monitoring
- 1+1 protection scheme available
- Transparent Data Rate transmission
- Work under Red / Blue light single fiber system
- Work with 1X2 Splitter on one side
- Support Automatic and Manual Switching
- Switching time< 20ms
- Support all F520 Chassis
| Inquiry | Parameters | Technical indicators | Download |
|---|---|---|---|
OLP Scheme Power Consumption Size Operating Temperature Storage Temperature Relative Humidity | 1+1 ≤ 5W 191(W) x 253(D) x 20(H)mm -10 ~ +60°C -40 ~ +85°C 5 ~ 95RH% |  |
