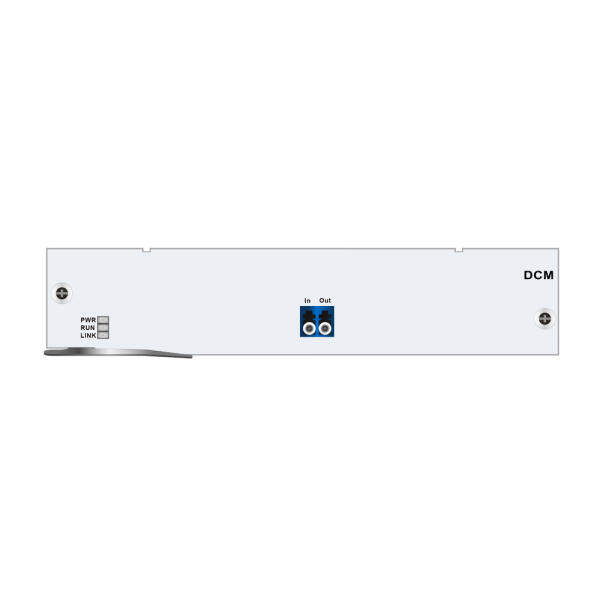

F520 DCM (Dispersion Compensation Module)
DCM (Dispersion Compensation Module) Card
Features:
- DWDM system dispersion compensation and Broadband low residual dispersion
- Conform to Telcordia GR-2854-CORE standard
- G.652 fiber C-Band 100% slope compensation
- Low insertion loss
- Low polarization model dispersion
- Reliability tested by Telcordia GR-1221-CORE
| Inquiry | Parameter | Min / Max | Download |
|---|---|---|---|
Operating Wavelength Range Maximum Input Power Size Operating Temperature Storage Temperature Relative Humidity | 1525 ~ 1565nm 23dBm 191(W) x 253(D) x 41(H) mm -5 ~ 60°C -40 ~ 85°C 85RH% |  |
