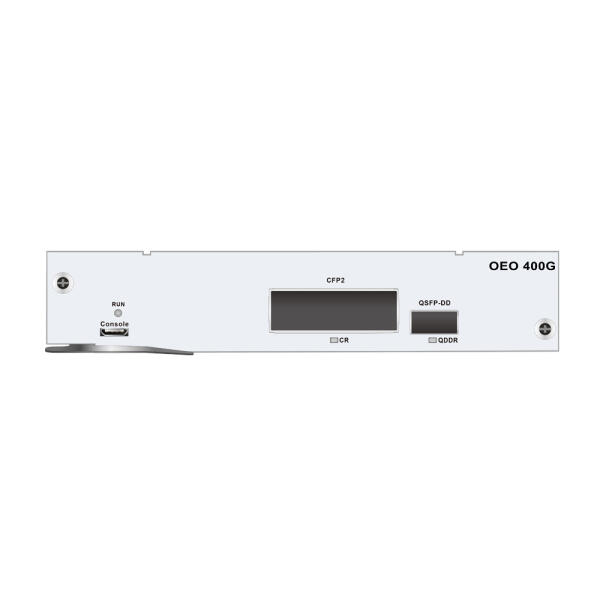

F520 400G OEO (400G Transponder, QSFP56-DD to CFP2)
F520 400G Transponder 1*400G QSFP56-DD to 1*400G CFP2
Features:
- Client side: 1*400G QSFP56-DD
- Line side: 1*400G CFP2
- Dispersion Tolerance up to 40000ps/nm (depends on CFP2-DCO module)
- Support adjustable wavelength with CFP2-DCO module
- Support adjustable output power with CFP2-DCO module
- Support OSNR real-time monitoring with CFP2-DCO module,
- Support port Loopback test
- Hot Swap
- Real-Time DDM
- Support ALS (Automatic Laser Shutdown)
- Support all F520 Chassis
| Inquiry | Parameter | Technical indicators | Download |
|---|---|---|---|
Data Rate Interface Type│Client Side Interface Type│Line Side Management Power Consumption Size(mm) Operating Temperature Storage Temperature Relative Humidity (no condensation) | 400Gbps 1*400G QSFP56-DD 1*400G CFP2 TELNET, SNMP, WEB Power Consumption 191(W) x 253(D) x 41(H) mm -10 ~ 60˚C -40 ~ 90˚C 5 ~ 95RH% | - |
