100G QSFP28
100G-QSFP28-SWDM4

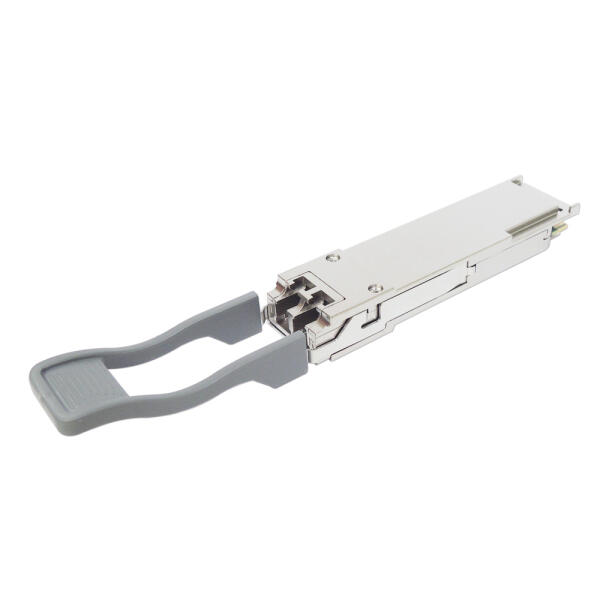

100G QSFP28 SWDM4 Transceiver
Hot Pluggable, Duplex LC, SWDM VCSEL, Multi-Mode, OM4 100M
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQ28-K7-S85-X1D | 100G | SWDM VCSEL | Duplex LC | OM3 75m OM4 100m OM5 150m | 0~70°C | QSFP28-100G-SWDM4, C-Temp | |
- 100GBASE Ethernet over duplex MMF
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with 100GBASE-SWDM4
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- 4CH SWDM MUX / DEMUX design
- Supports 103.1Gbps aggregate bit rate
- Hot Pluggable
- 4x25Gb/s VCSEL SWDM transmitter
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
- Single 3.3V power supply
- Link distance 75m over OM3 fiber, 100m over MM OM4 fiber and 150m over OM5 fiber
- Maximum Power consumption 3.5W
- RoHS compliant
