100G QSFP28
100G-QSFP28-ER4

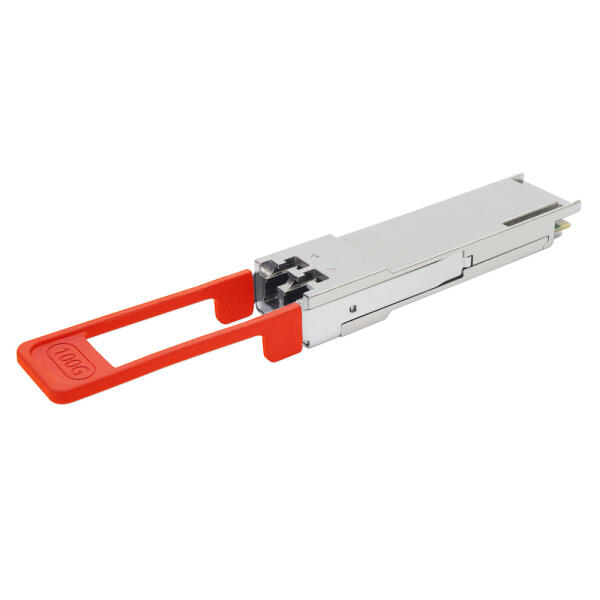

100G QSFP28 ER4 Transceiver
Hot Pluggable, Duplex LC, LAN-WDM DFB, Single Mode, 40KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FQ28-K7-L13-40D | 100G | LWDM DFB | Duplex LC | SM 40km | 0~70°C | QSFP28-100G-ER4 Single-Rate, C-Temp | |
| FQ28-K7-L13-40Di | 100G | LWDM DFB | Duplex LC | SM 40km | -40~85°C | QSFP28-100G-ER4 Single-Rate, I-Temp | |
| FQ28-K7-L13-40DR | 100G | LWDM DFB | Duplex LC | SM 40km (FEC Off) | 0~70°C | QSFP28-100G-ER4-OTU4, Dual-Rate | |
| FQ28-K7-L13-40D-0T1 | 100G | LWDM DFB | Duplex LC | SM 40km (FEC Off) | 0~70°C | QSFP28-100G-ER4-Ethernet, Single-Rate | |
- 100GBASE-ER4 Ethernet
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with IEEE802.3ba 100GBASE-ER4
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- 4CH LWDM MUX / DEMUX design
- Data Rate 25.78125Gbps per Lane
- Built in quad Tx CDR and Rx CDR
- Hot Pluggable QSFP28 footprint
- O-Band LWDM DFB transmitter
- APD receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 40km over SM fiber
- Maximum Power consumption 4.5W
- RoHS compliant
