1.25G SFP
1.25G SFP-Duplex

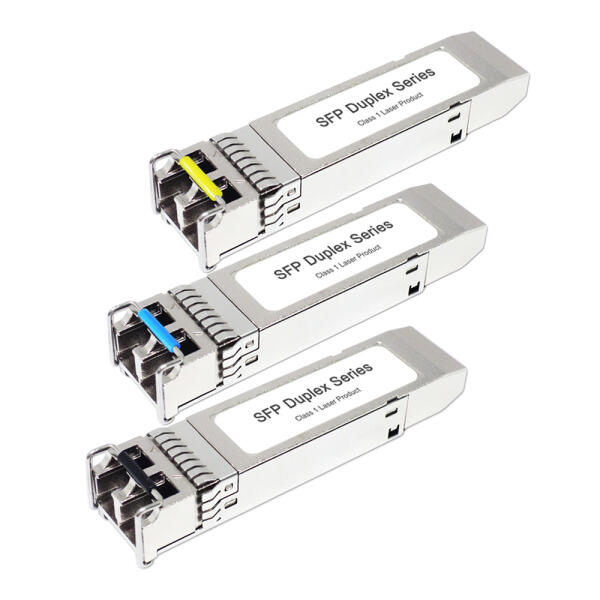

1.25G Gigabit Ethernet SFP Transceiver
Hot Pluggable, Duplex LC, 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 550M~160KM
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSFP-C7-M85-X5D | 1.25G | 850nm | Duplex LC | OM2 550m | 0~70°C | SFP-1000SX | |
| FSFP-C7-M85-X5Di | 1.25G | 850nm | Duplex LC | OM2 550m | -40~85°C | SFP-1000SX, I-Temp | |
| FSFP-C7-M13-02D | 1.25G | 1310nm | Duplex LC | OM2 2km | 0~70°C | SFP-1000SX2 | |
| FSFP-C7-M13-02Di | 1.25G | 1310nm | Duplex LC | OM2 2km | -40~85°C | SFP-1000SX2, I-Temp | |
| FSFP-C7-S13-10D | 1.25G | 1310nm | Duplex LC | SM 10km | 0~70°C | SFP-1000LX | |
| FSFP-C7-S13-10Di | 1.25G | 1310nm | Duplex LC | SM 10km | -40~85°C | SFP-1000LX, I-Temp | |
| FSFP-C7-S13-10DR | 1.25G | 1310nm | Duplex LC | SM 10km | 0~70°C | SFP-100/1000LX, Dual-Rate | |
| FSFP-C7-S13-10DRi | 1.25G | 1310nm | Duplex LC | SM 10km | -40~85°C | SFP-100/1000LX, Dual-Rate, I-Temp | |
| FSFP-C7-S13-20D | 1.25G | 1310nm | Duplex LC | SM 20km | 0~70°C | SFP-1000LX20 | |
| FSFP-C7-S13-20Di | 1.25G | 1310nm | Duplex LC | SM 20km | -40~85°C | SFP-1000LX20, I-Temp | |
| FSFP-C7-S13-20DM | 1.25G | 1310nm | Duplex LC | SM 20km | 0~70°C | SFP-1000LX20, Multi-Rate | |
| FSFP-C7-S13-20DMi | 1.25G | 1310nm | Duplex LC | SM 20km | -40~85°C | SFP-1000LX20, Multi-Rate, I-Temp | |
| FSFP-C7-S13-20DR | 1.25G | 1310nm | Duplex LC | SM 20km | 0~70°C | SFP-100/1000LX20, Dual-Rate | |
| FSFP-C7-S13-20DRi | 1.25G | 1310nm | Duplex LC | SM 20km | -40~85°C | SFP-100/1000LX20, Dual-Rate, I-Temp | |
| FSFP-C7-S13-40D | 1.25G | 1310nm | Duplex LC | SM 40km | 0~70°C | SFP-1000LHX | |
| FSFP-C7-S13-40Di | 1.25G | 1310nm | Duplex LC | SM 40km | -40~85°C | SFP-1000LHX, I-Temp | |
| FSFP-C7-S15-50D | 1.25G | 1550nm | Duplex LC | SM 50km | 0~70°C | SFP-1000XD | |
| FSFP-C7-S15-50Di | 1.25G | 1550nm | Duplex LC | SM 50km | -40~85°C | SFP-1000XD, I-Temp | |
| FSFP-C7-S13-60D | 1.25G | 1310nm | Duplex LC | SM 60km | 0~70°C | SFP-1000LHX60 | |
| FSFP-C7-S13-60Di | 1.25G | 1310nm | Duplex LC | SM 60km | -40~85°C | SFP-1000LHX60, I-Temp | |
| FSFP-C7-S15-80D | 1.25G | 1550nm | Duplex LC | SM 80km | 0~70°C | SFP-1000ZX | |
| FSFP-C7-S15-80Di | 1.25G | 1550nm | Duplex LC | SM 80km | -40~85°C | SFP-1000ZX, I-Temp | |
| FSFP-C7-S15-A0D | 1.25G | 1550nm | Duplex LC | SM 100km | 0~70°C | SFP-1000ZX100 | |
| FSFP-C7-S15-A0Di | 1.25G | 1550nm | Duplex LC | SM 100km | -40~85°C | SFP-1000ZX100, I-Temp | |
| FSFP-C7-S15-A2D | 1.25G | 1550nm | Duplex LC | SM 120km | 0~70°C | SFP-1000EZX | |
| FSFP-C7-S15-A2Di | 1.25G | 1550nm | Duplex LC | SM 120km | -40~85°C | SFP-1000EZX, I-Temp | |
| FSFP-C7-S15-A6D | 1.25G | 1550nm | Duplex LC | SM 160km | 0~70°C | SFP-1000EZX160 | |
- Gigabit Ethernet 1000BASE-LX @1.25G
- Fiber Channel 1GFC @1.0625G
- Compliant with IEEE802.3z Gigabit Ethernet
- Compliant with Fiber Channel 100-SM-LC-L
- Compliant with INF-8074i SFP MSA
- Hot Pluggable
- 850nm/1310nm/1550nm laser transmitter
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 550m~160km over MM/SM fiber
- RoHS Compliant
